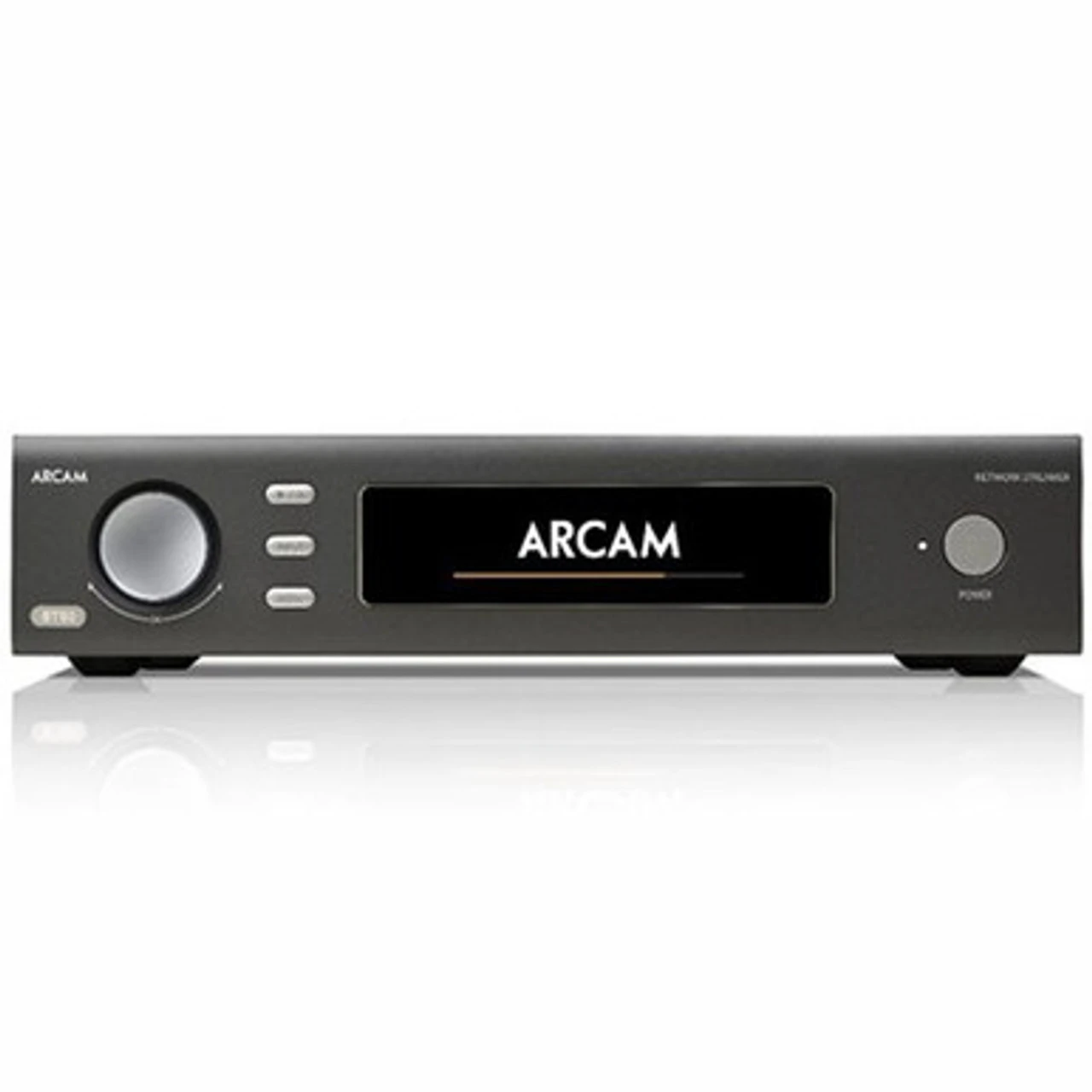

Network Streamer Brings a World of Music to Your Fingertips, Plays with Analog-Like Warmth and Terrific Clarity: Arcam ST60 Features 32-Bit SABRE DAC, MQA Decoding, Roon Ability
Effortlessly access a practically limitless amount of music and hear it in enticing fidelity with the Arcam ST60 network streamer, which brings services such as TIDAL, Qobuz, Spotify, Deezer, and more over GoogleCast or Apple AirPlay 2. Part of Arcam’s celebrated HDA Series, ST60 also handles UPnP sources and decodes MQA. Equipped with a 32-bit ESS9038K2M SABRE DAC, it boasts forward-looking connectivity that should mate with practically any system. Choose from Ethernet, WiFi, and USB interfaces. Four digital inputs, balanced XLR and single-ended RCA outputs, plus optical and coaxial digital outputs abet full I/P and RS232 control for custom applications. Roon certification is forthcoming, too, but what really impresses is ST60’s sound.
Able to play with tremendous detail, balance, texture, and liveliness, ST60 exhibits analog-like warmth and roundedness. True to Arcam tradition, the 12.1-pound unit also renders noise and distortion as an afterthought. With a THD rating of 0.0008% and RMS jitter of less than 20 psec, ST60 provides sterling clarity and transparency. Factor in the supplied remote control, a three-year manufacturer warranty, and our 100% Music Direct Satisfaction Guarantee, and there’s no reason not to go streaming wild.
- 4 digital inputs
- Balanced XLR and Single ended RCA analog outputs
- Optical and coaxial digital outputs
- GoogleCast, Airplay2, uPnP Streamer
- Roon endpoint
- MQA supported
- 32-bit ESS9038K2M Sabre DAC
- Full I/P and RS232 control including Control4 and Crestron
- Total harmonic distortion + noise = 0.0008%
Read More
Signal/Noise Ratio (Awtd): 118dB unbalanced, 122db balanced
Harmonic Distortion (1kHz): <0.0008%
Frequency response: 10Hz – 20kHz ± 0.5dB
Output Level (Fixed): 2.2Vrms unbalanced, 4.5Vrms balanced
Output Impedance: 47Ω unbalanced, 600Ω balanced
Minimum Recommended Load: 5kΩ
RMS Jitter: < 20 psec
SPDIF Receiver: AKM4113
Supported sample rates:
Optical: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
Coaxial: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Bit depth: 16-bit – 32-bit
USB: 2.0 High Speed (480Mbps)
Ethernet: 10/100Mbps
Wireless: 802.11b/g/n
Mains voltage: 110-240V, 50-60Hz
Maximum power consumption: 10W
Low power standby consumption: 0.5W
Network standby consumption: 2W
Dimensions (WHD): 17.0″ x 4.0″ x 12.0″
Weight: 12.1 lbs.
Supplied accessories:
Mains leads
Remote control
2 x AAA batteries
User Manual
2 x WiFi Antenna
