The World’s First Lossless Bluetooth DAC/Amp the NEO iDSD 2
The NEO iDSD 2 is a versatile 3-in-1 DAC/Amp designed specifically for CAS audiophiles. It seamlessly pairs with headphones as a Head-Fi DAC/Amp, serves as a pure DAC with an integrated amplifier, or functions as a DAC/Preamp for active speakers and power amplifiers.
Boasting the latest Bluetooth 5.4 technology, it supports the new aptX Lossless, the sole Bluetooth codec offering lossless CD-quality audio without sound quality compromise.

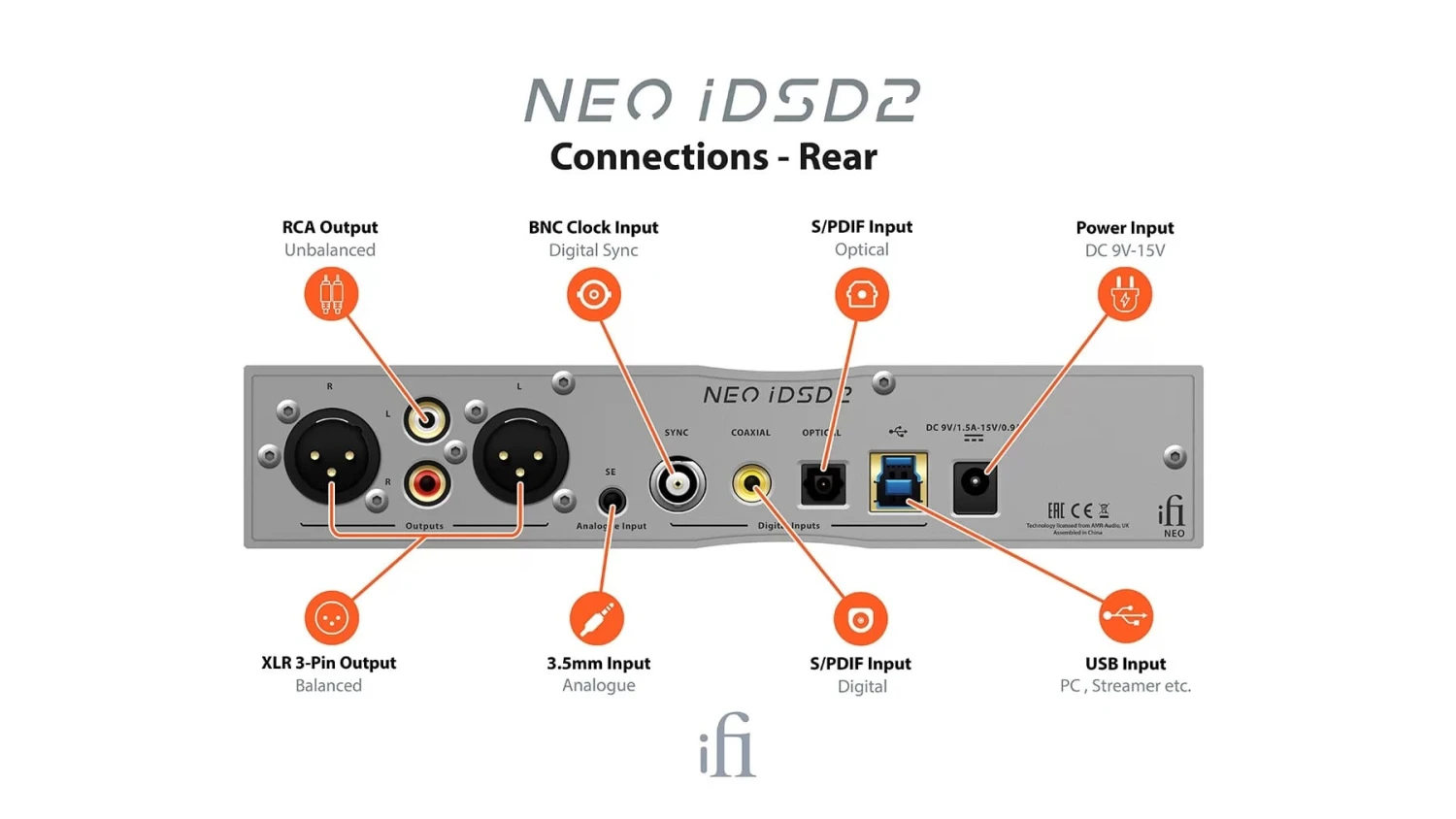

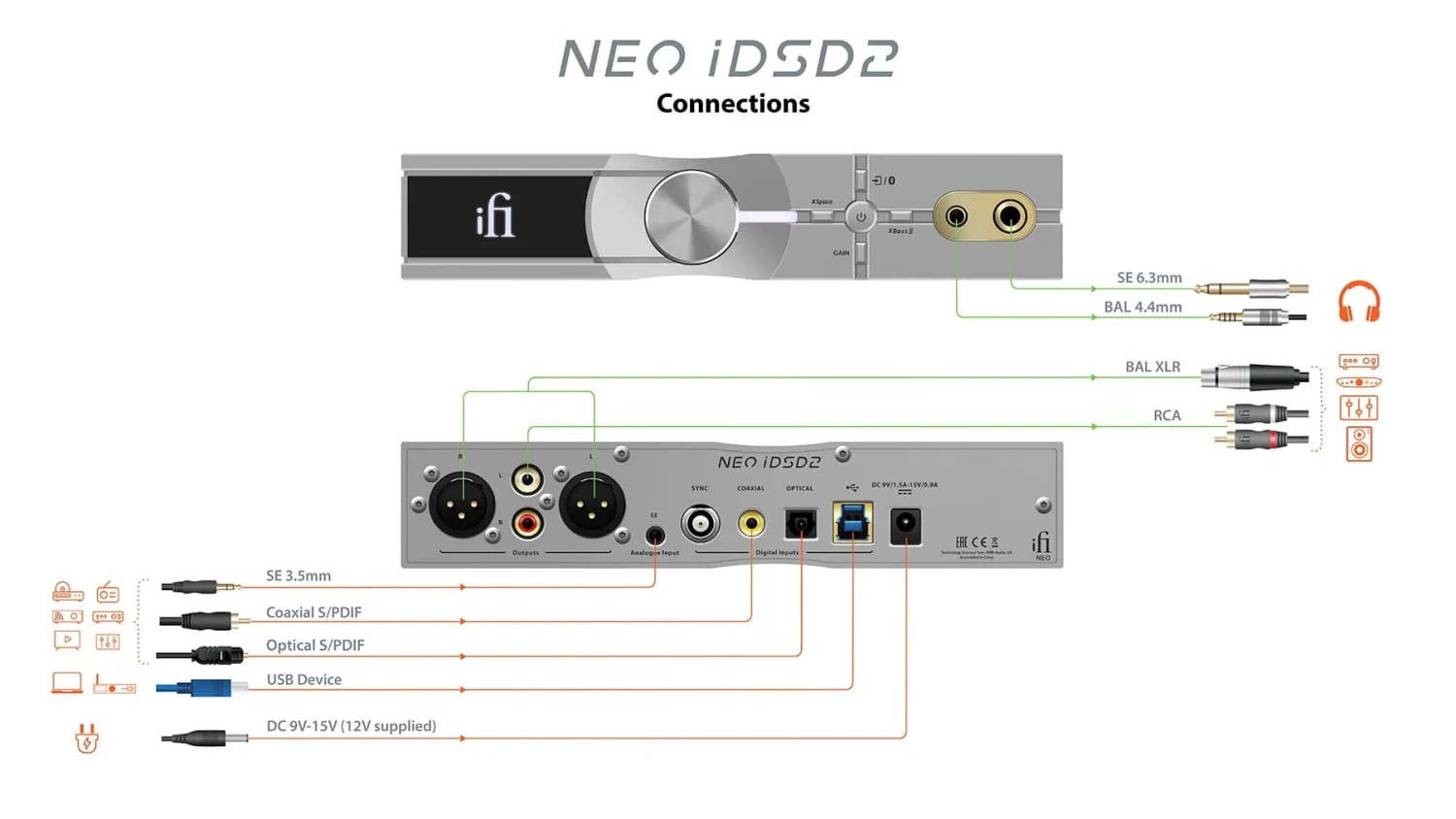

- Inputs:
- Digital USB3.0 B (USB2.0 compatible); S/PDIF (coaxial/optical)
- Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptx, LDAC, HWA/LHDC, AAC and SBC)
- Analogue UnBAL 3.5mm
- Clock: External Sync Clock 10MHz, 1Vpp nominal, 75Ω. Sinewave or Squarewave
- Format: PCM 768kHz; DSD 512 (22.6MHz); MQA Full Decoder
- Line Section
- Outputs:
- Balanced XLR 19.5V max. (variable) 4.4V fixed
- UnBAL RCA 10.5V max. (variable) 2.2V fixed
- Output Impedance: XLR ≤100Ω; RCA ≤50Ω
- SNR: <-120dB(A) @ 0dBFS
- DNR: >120dB(A) @ -60dBFS
- THD+N: <0.0015% @ 0dBFS
- Headphone Section

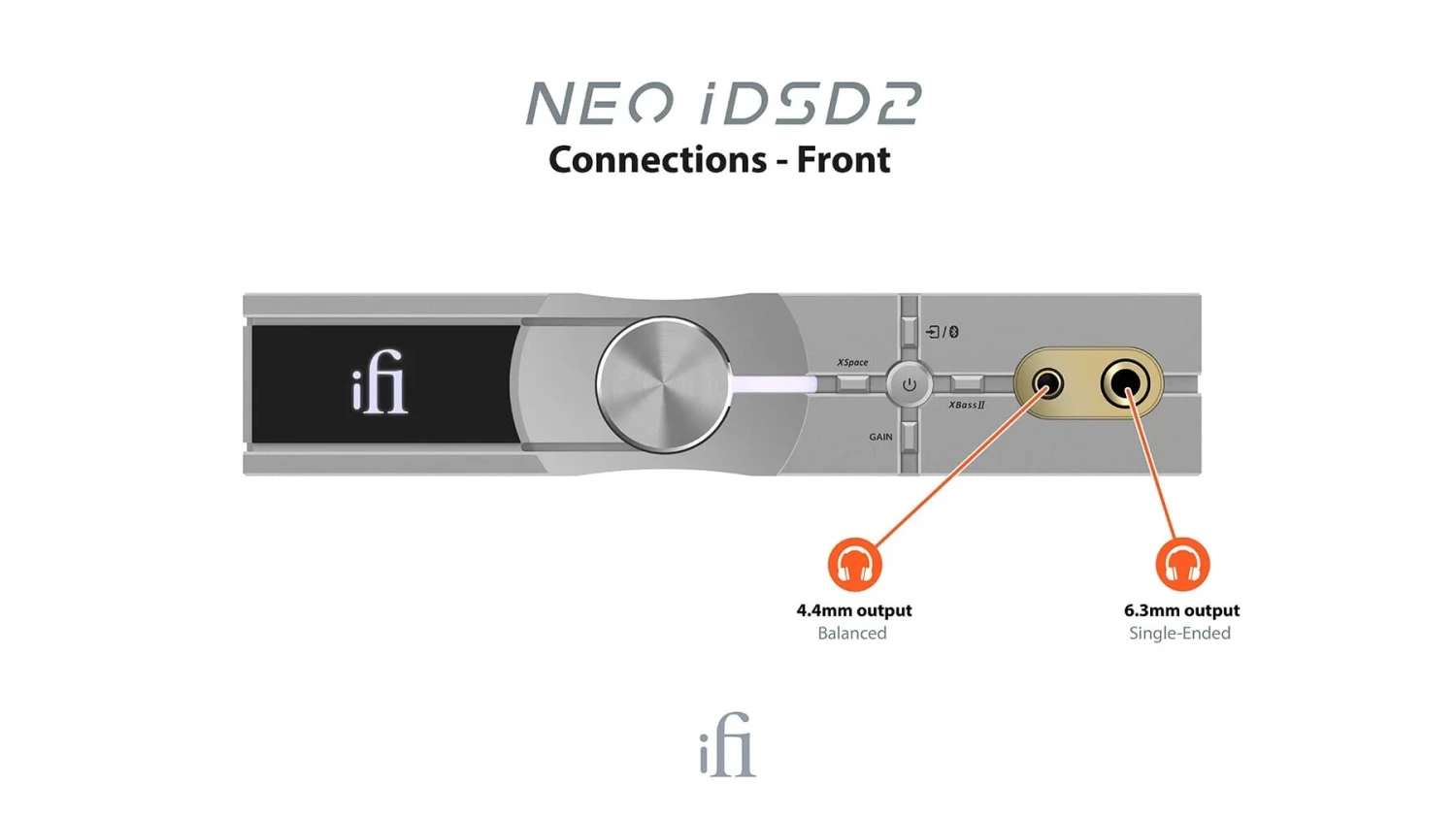

- Output:
- Balanced 4.4mm 3.5V / 19.5V max. (12Ω – 600Ω Headphone)
- UnBAL 6.3mm 4.5V / 9.50V max. (12Ω – 300Ω Headphone)
- Output Power:
- Balanced >19.5V/650 mW (@ 600Ω); >13.3V/5,551 mW (@ 32Ω)
- UnBAL >10.5V/184 mW (@ 600Ω); >9.5V/2,832 mW (@ 32Ω)
- Output Impedance: <1Ω
- SNR: >120dB(A) (3.3V 6.3mm/6.2V 4.4mm)
- DNR: -120dB(A)
- THD + N: <0.0015% (125mW @ 32Ω)
- Power supply requirement: DC 9V/1.5A – 15V/0.9A (centre +ve)*
- Power consumption: No Signal ~5W; Max Signal ~13.5W
- Dimensions: 214 x 158 x 41 mm (8.4″ x 6.2″ x 1.6″)
- Net weight: 916g (2.0 Ibs)
- Limited Warranty: 12 months**
- *A power supply unit must be able to deliver minimum rated repetitive current
- **12 months typical or as permitted/required by local reseller laws.
- ***Specifications are subject to change without notice
