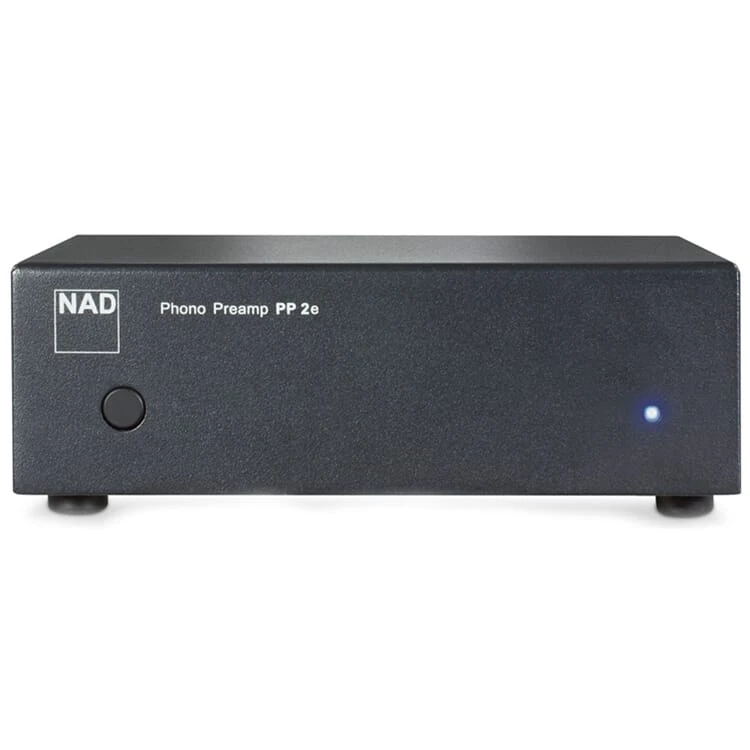

NAD PP 2e Phono Preamp
Many of today’s stereo and AV amplifiers and receivers have either
eliminated the phonograph input altogether, or included a low cost – and
low performance – circuit for attaching your turntable. The NAD PP 2e offers superb performance in a clean and simple package for a very reasonable cost. The PP 2e is a improved successor to the very popular PP 2, with a new power supply that reduces power consumption to new standards.
Features
- Selectable MM and MC Phono Stage
- External 24 volt Power Supply
- Close Tolerance High Quality Components
- LED Power Indicator
MC
Input Impedance (R and C): 100Ω + 180pF
Gain at 1kHz: 60dB
Input sensitivity (ref. 200mV ouput): 0.2mV
Signal to noise:
A weighted: 78dB
Unweighted: 73dB
Input overload (20Hz/1kHz/20kHz): 0.8/9/84mV
Rated Distortion (THD 20Hz – 20kHz): <0.03%
RIAA response accuracy: ±0.3dB
MM
Input Impedance (R and C): 47kΩ + 200pF
Gain at 1kHz: 35dB
Input sensitivity (ref. 200mV ouput): 3.5mV
Signal to noise:
A weighted: 80dB
Unweighted: 70dB
Input overload (20Hz/1kHz/20kHz): 10/102/950mV
Rated Distortion (THD 20Hz – 20kHz): <0.03%
RIAA response accuracy: ±0.3dB
Dimensions (WHD): 5.3″ x 2″ x 2.8″
Warranty: User Interfaces – one year parts and labor to the original purchaser. Two years parts and labor to
the original purchaser on all other products
