Description

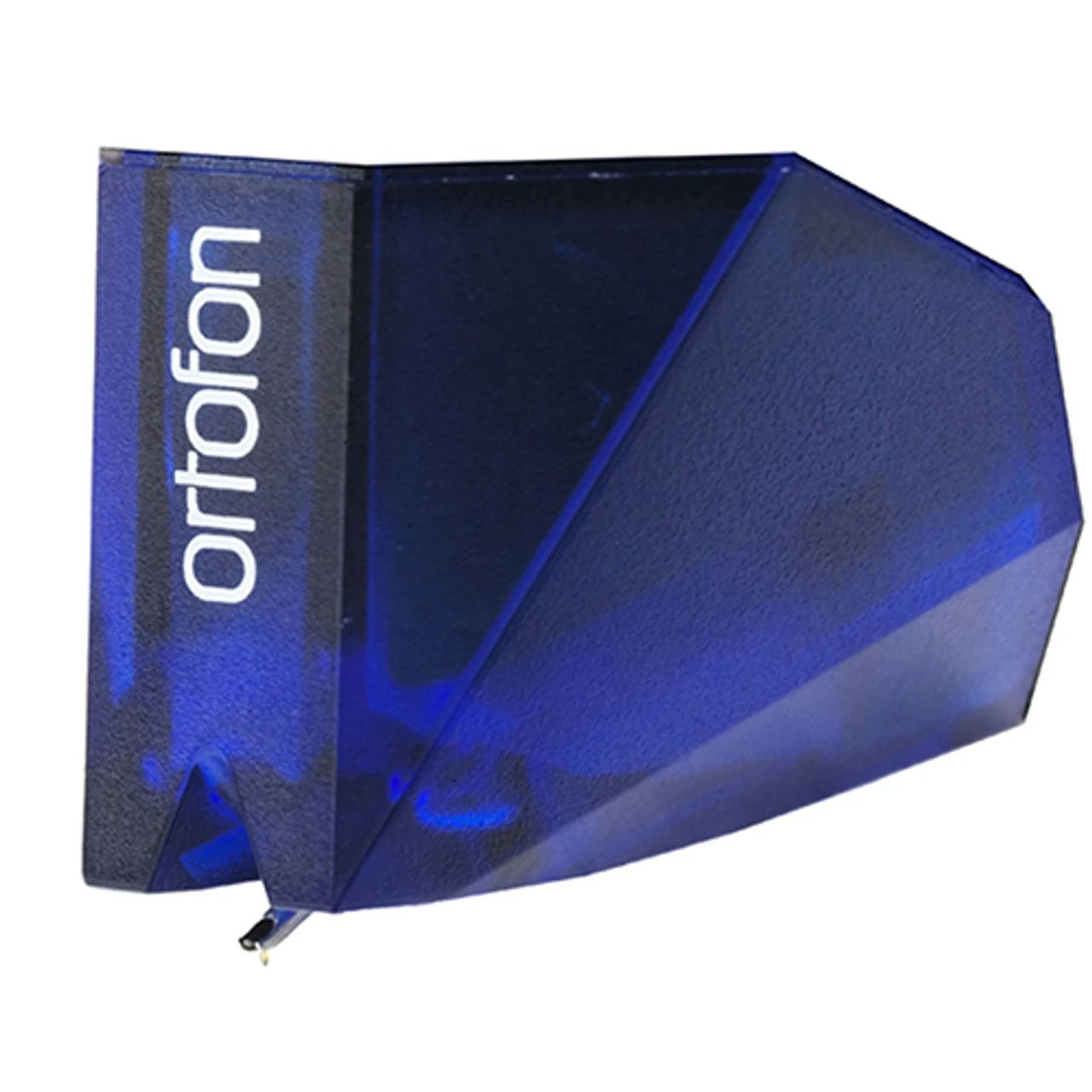

Quickly and Easily Replace the Worn-out Stylus on your 2M Blue
Replacing the stylus on a 2M series Ortofon cartridge is simplicity itself. Gently slide the blue colored plastic part of the cartridge forward (it’s a press fit) until it slides off. Then, reverse the process with the new stylus. Once fully seated, your new 2M stylus is ready for action, no further adjustments are required.
The 2M Blue features a Nude elliptical diamond stylus. For questions about which other 2M styli can be used on a 2M Blue body, please download the Ortofon 2M Stylus Compatibility document in the downloads sections.
Output voltage at 1000 Hz, 5cm/sec. 5.5 mV
Channel balance at 1 kHz 1.5 dB
Channel separation at 1 kHz 25 dB
Channel separation at 15 kHz 15 dB
Frequency range at – 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Blue
Cartridge weight 7.2 g
Channel balance at 1 kHz 1.5 dB
Channel separation at 1 kHz 25 dB
Channel separation at 15 kHz 15 dB
Frequency range at – 3dB 20-25.000 Hz
Frequency response 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 20 µm/mN
Stylus type Nude Elliptical
Stylus tip radius r/R 8/18 µm
Tracking force range 1.6-2.0g (16-20 mN)
Tracking force, recommended 1.8 g (18 mN)
Tracking angle 20°
Internal impedance, DC resistance 1.3 kOhm
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Blue
Cartridge weight 7.2 g
