Description

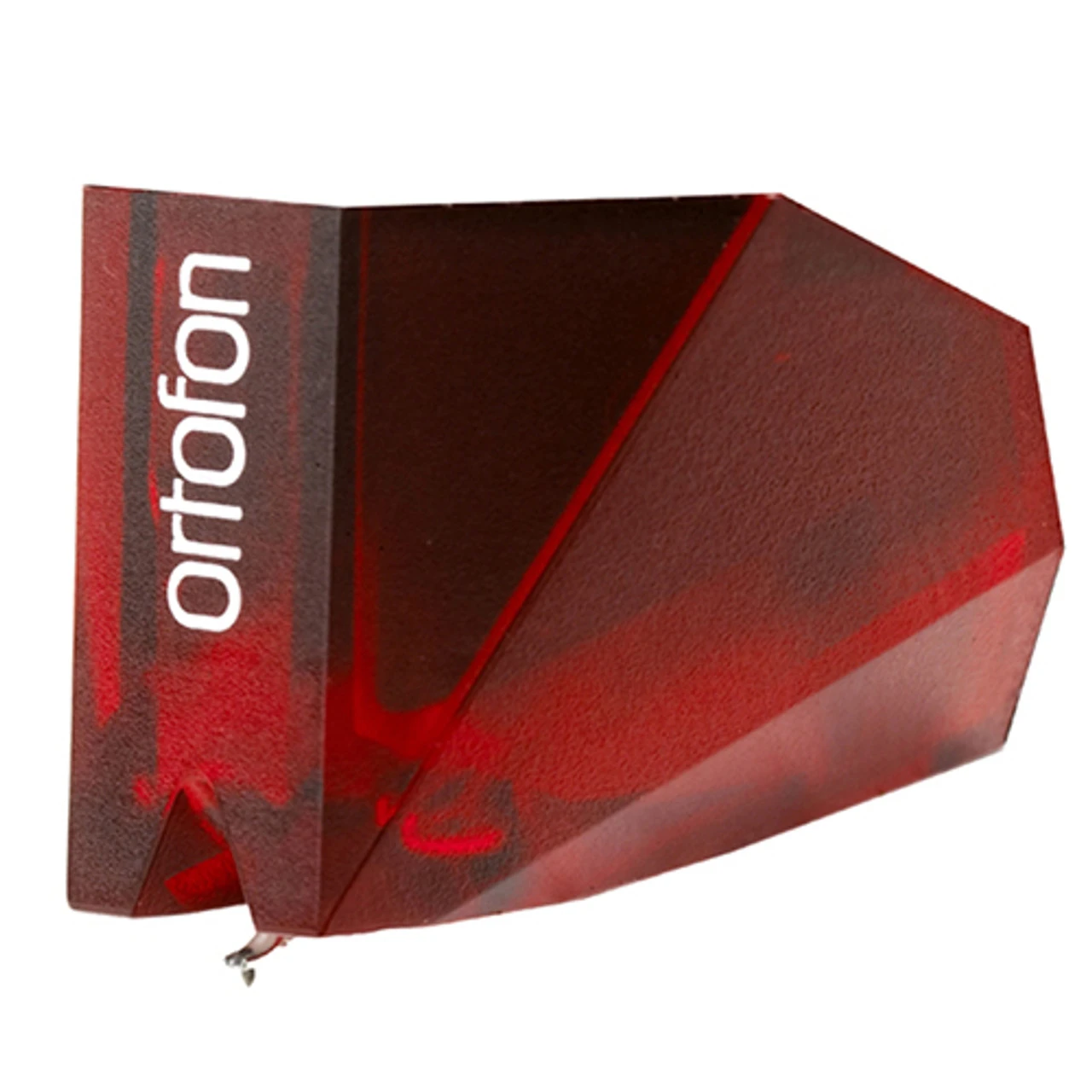

Quickly and Easily Replace the Worn-out Stylus on your 2M Red
Replacing the stylus on a 2M series Ortofon cartridge is simplicity itself. Gently slide the black plastic part of the cartridge forward (it’s a press fit) until it slides off. Then, reverse the process with the new stylus. Once fully seated, your new 2M stylus is ready for action, no further adjustments are required.
The 2M Red features a tipped elliptical diamond stylus. For questions about which other 2M styli can be used on a 2M Red body, please download the Ortofon 2M Stylus Compatibility document in the downloads sections.
Output voltage at 1000 Hz: 5cm/sec. 5.5 mV
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at – 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius r/R: 8/18 µm
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1.3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7.2 g
Channel balance at 1 kHz: 1.5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at – 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius r/R: 8/18 µm
Tracking force range: 1.6-2.0g (16-20 mN)
Tracking force, recommended: 1.8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1.3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7.2 g
