Revela Loudspeakers Are A Sonic Revelation

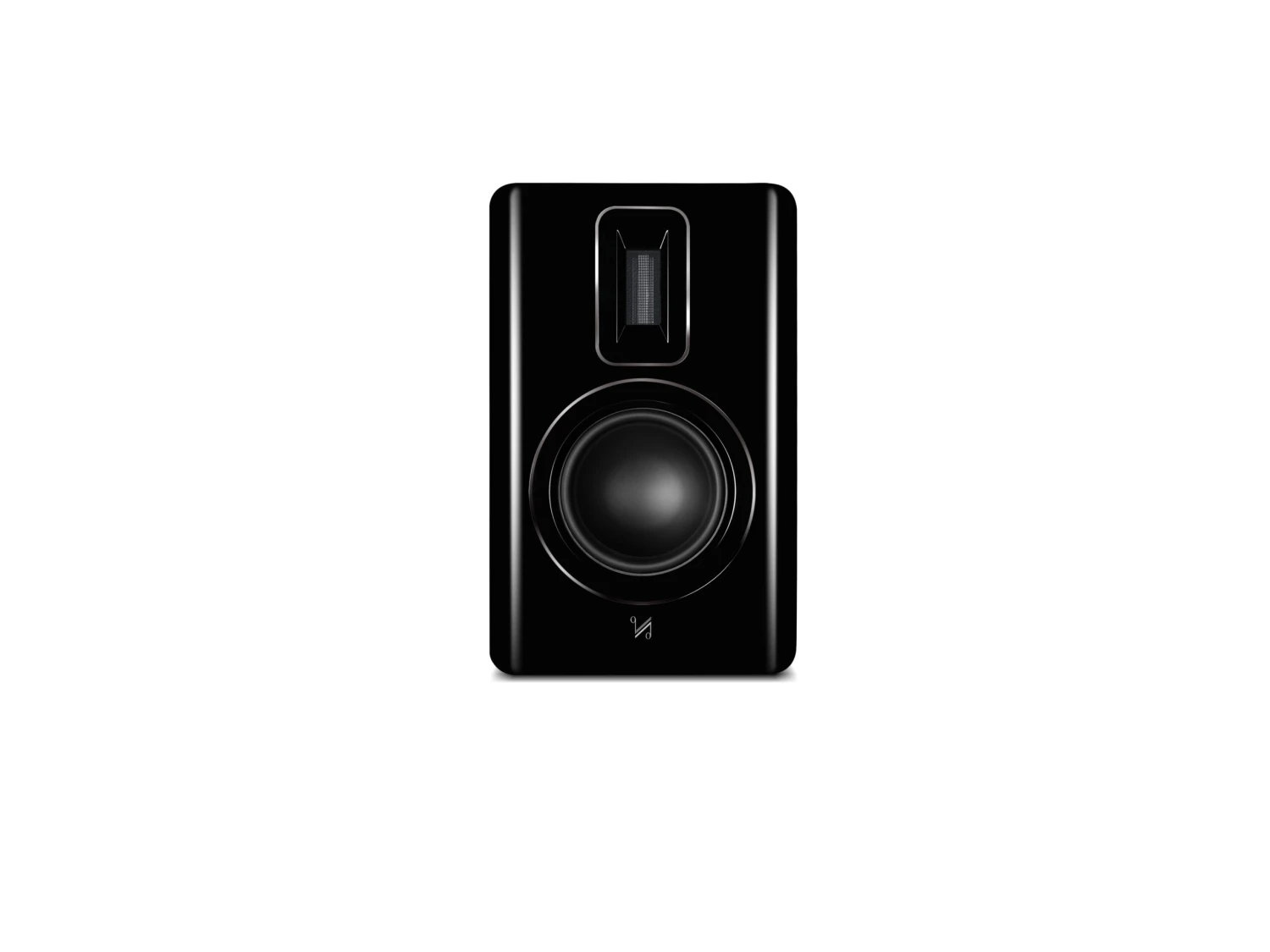

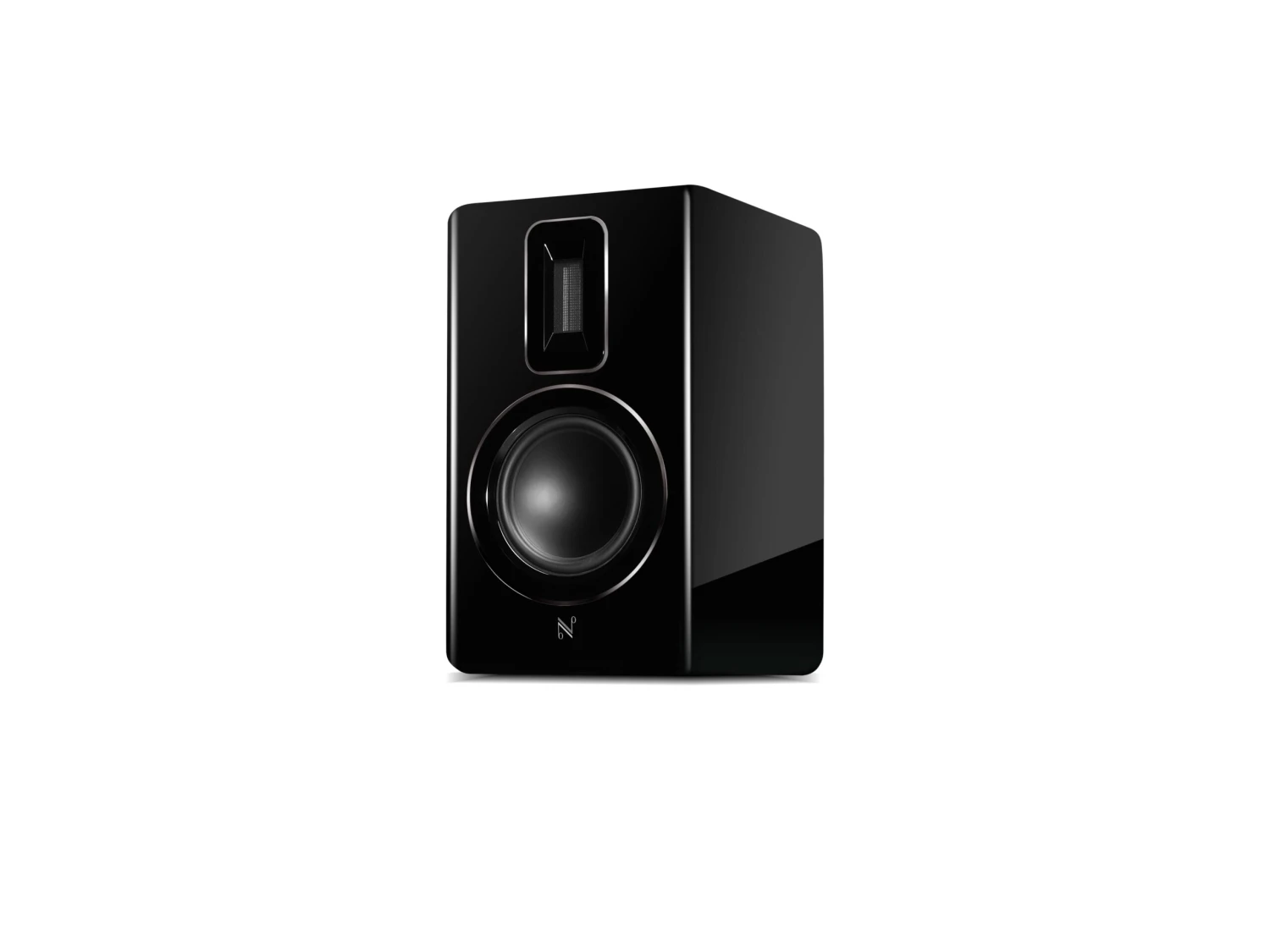

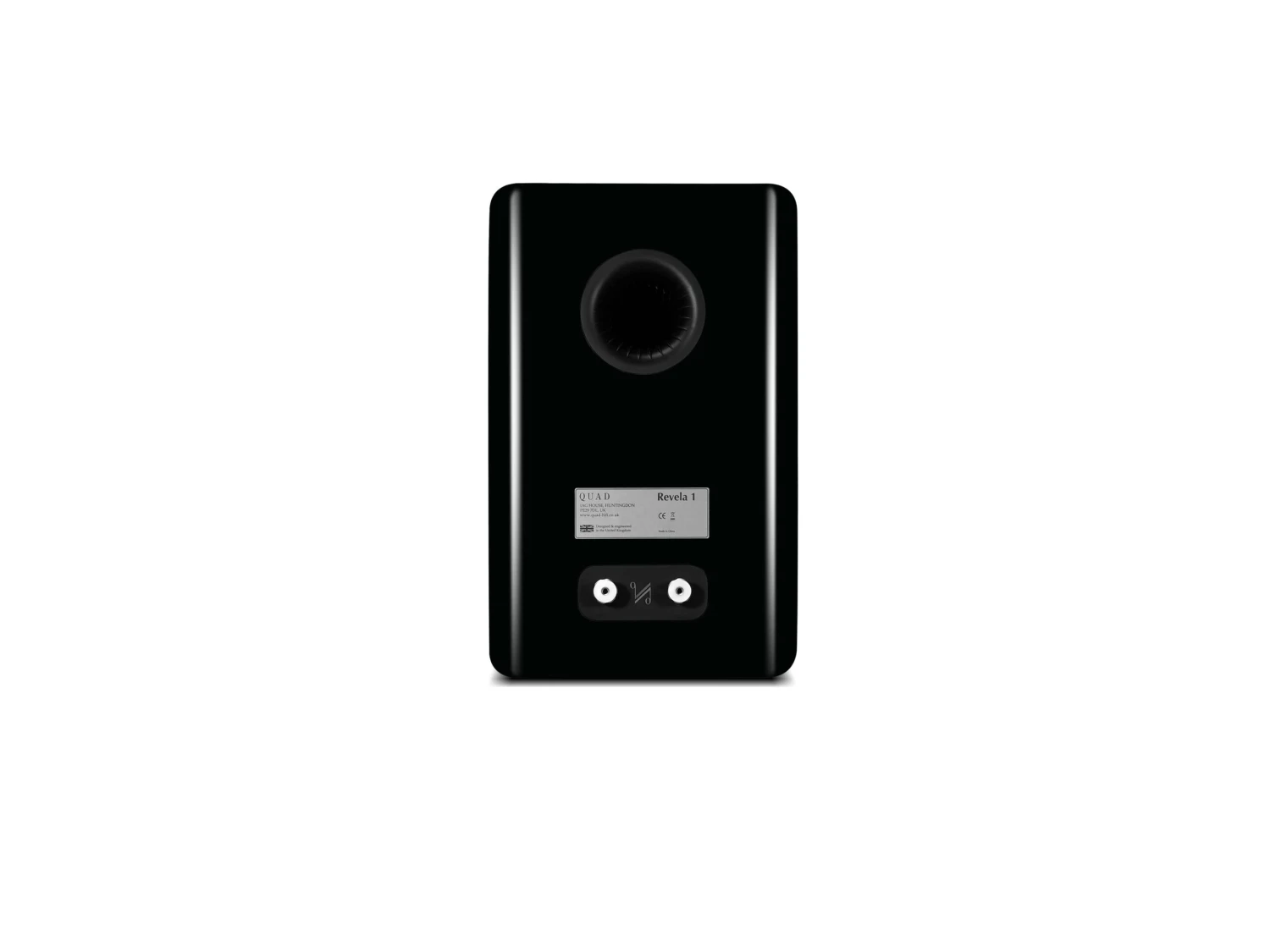

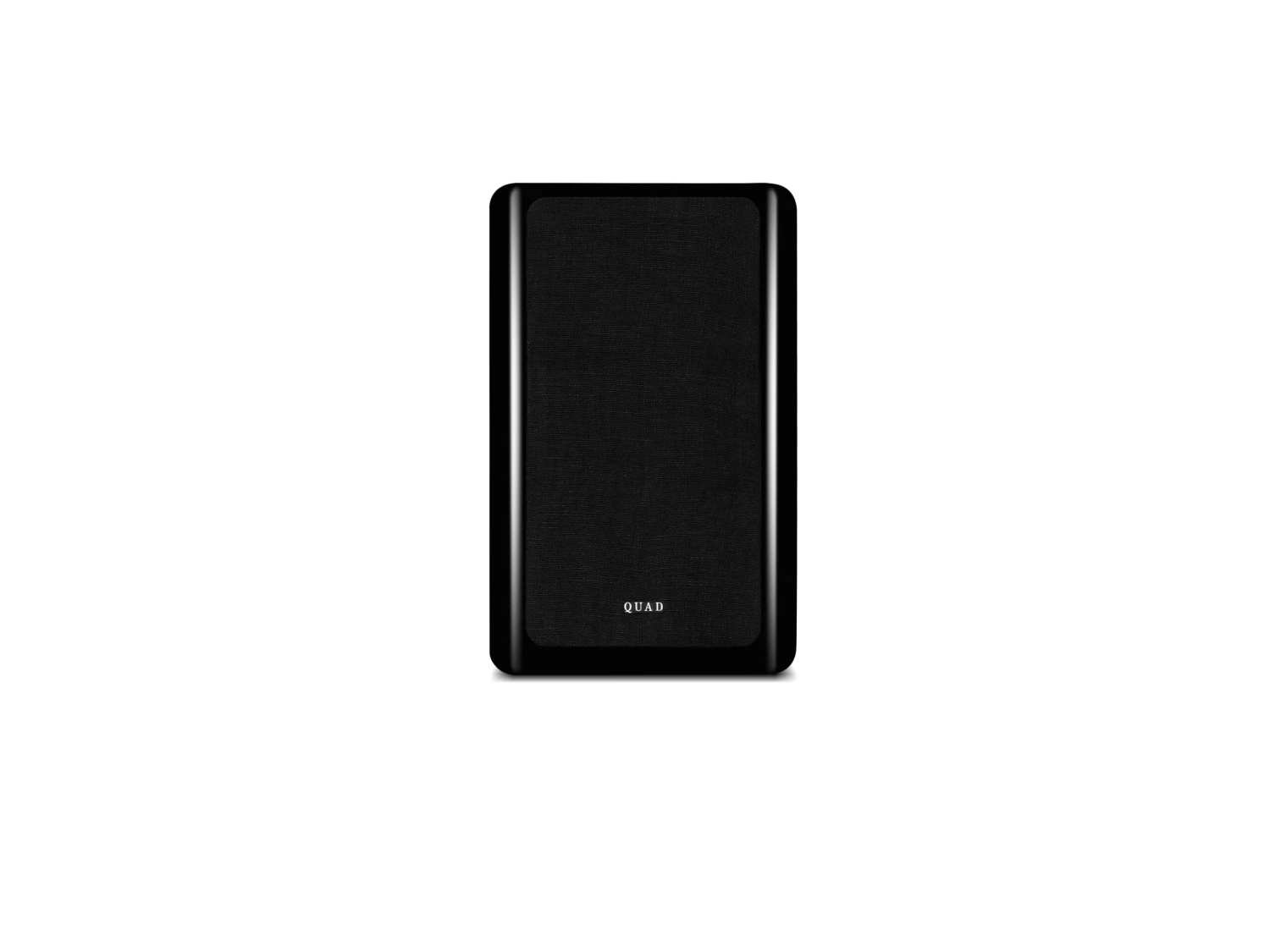

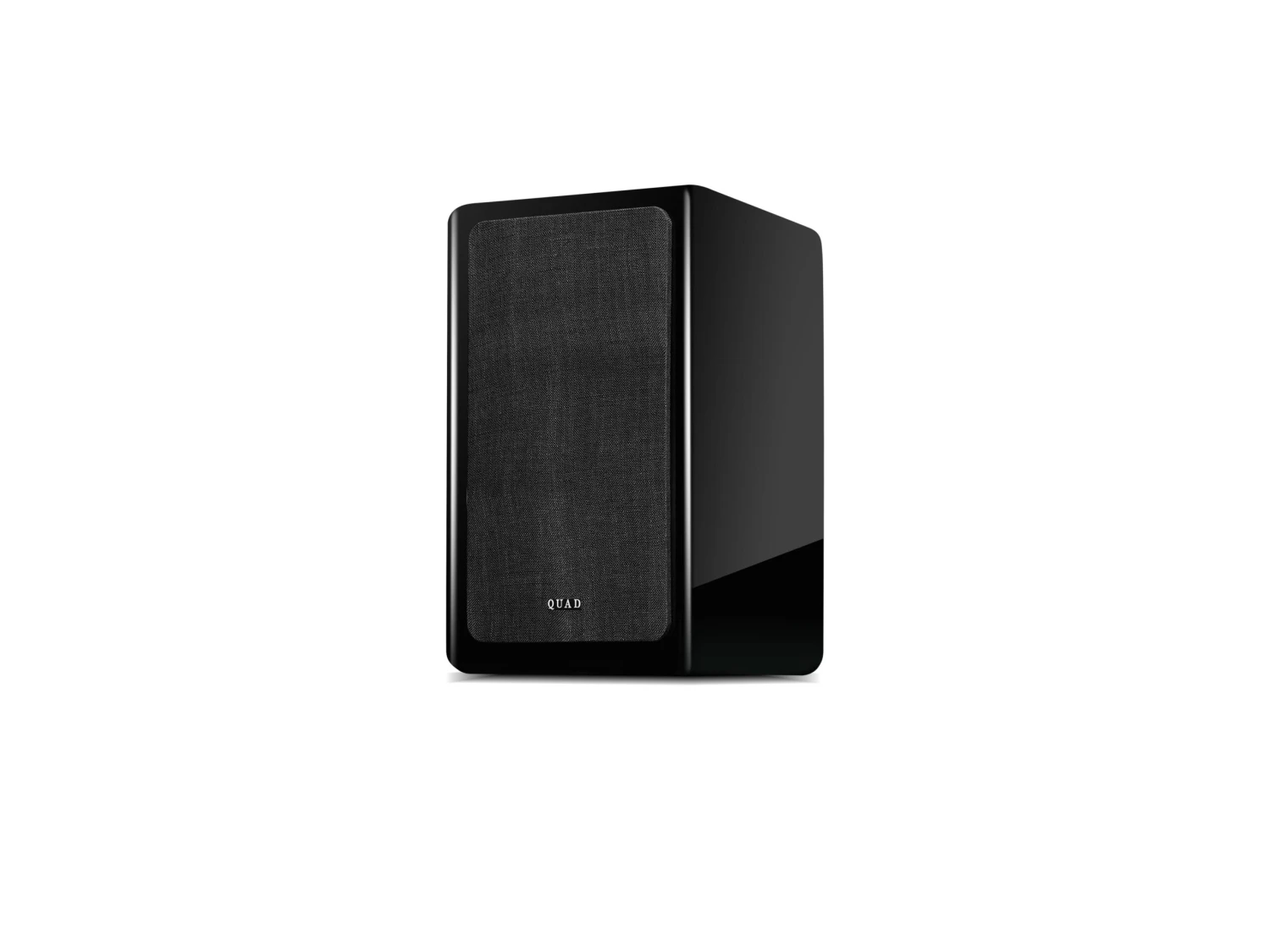

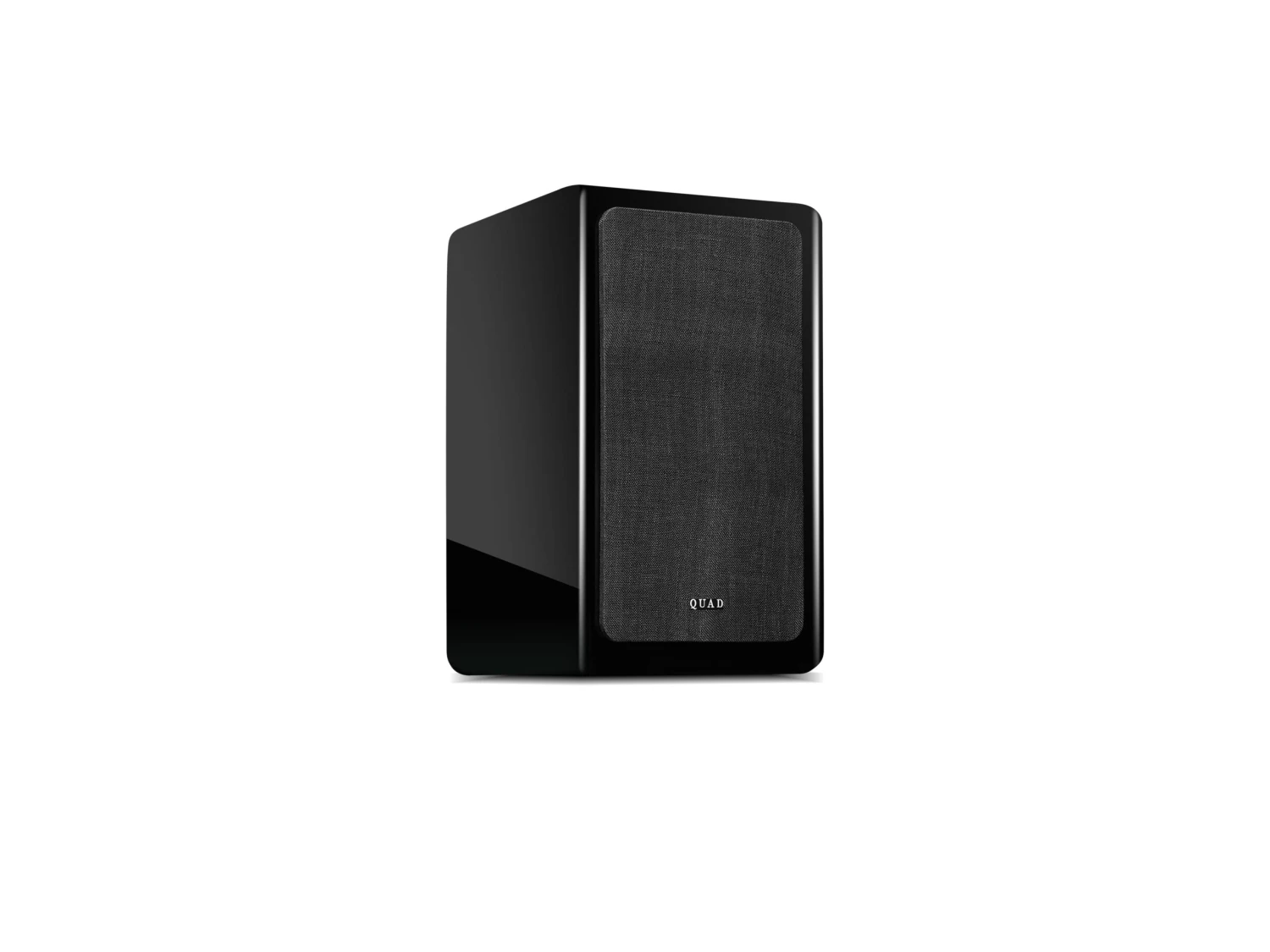

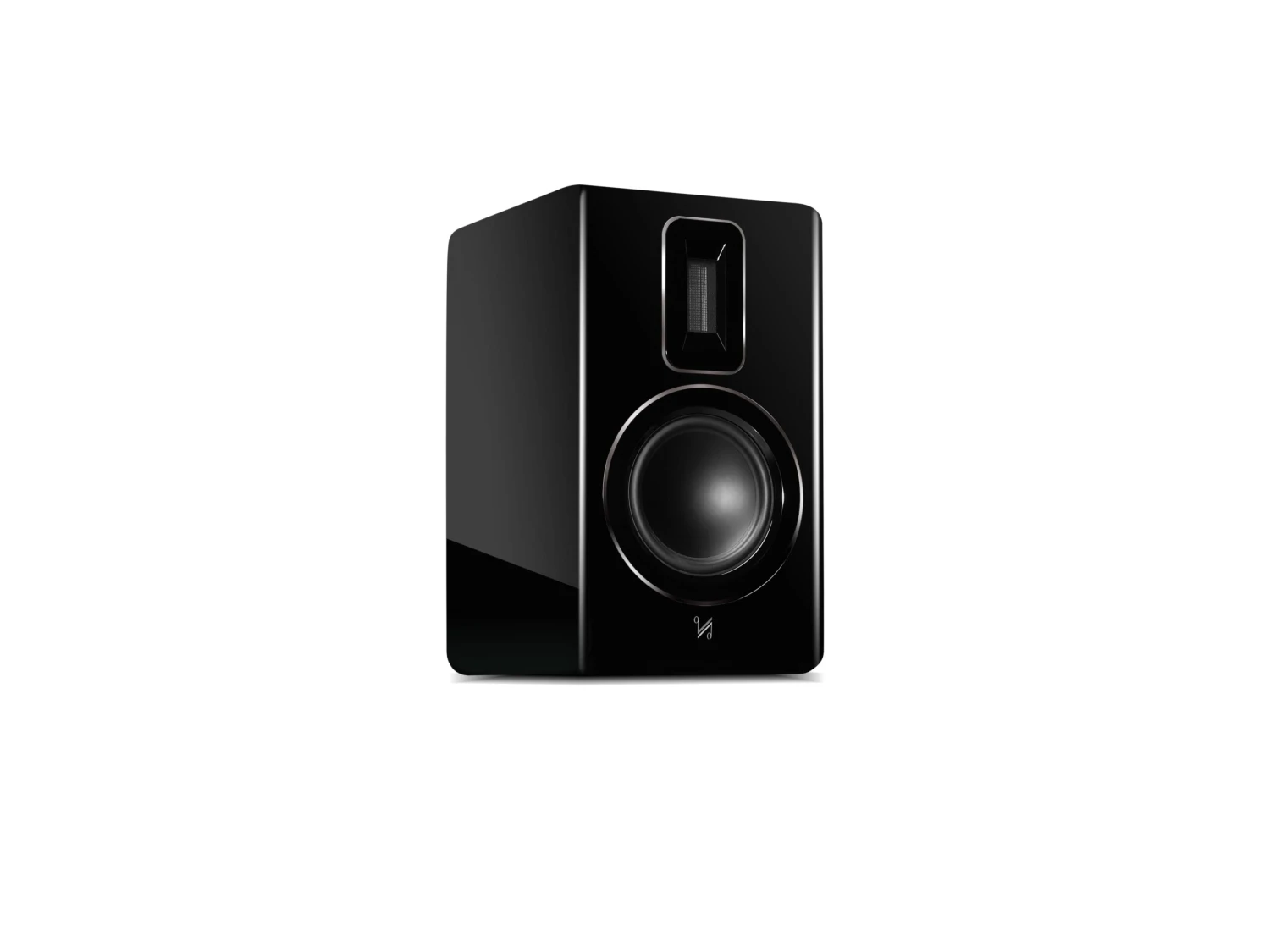

The Revela 1 is a classic bookshelf/stand-mount monitor equipped with a 6.5″ woofer and offered with an optional custom-engineered stand of equally striking design. The stand is finished in the same high-gloss paint standards as the speaker and provides the perfect mounting option and display solution for the stand-mount offering in the series.
QUAD’s Director of Acoustics, Peter Comeau, has furthered his ground-breaking engineering work in further developing this Ribbon HF with over four years of research to bring a new level of musical delicacy, smoothness and ‘hear-through’ performance, thus revealing beautiful details of your music collection with a truly breath-taking performance.
- General Description Bookshelf
- Enclosure Type Bass reflex
- Transducer Complement 2-way
- Bass Driver 165mm advanced fibre cone
- Midrange Driver
- Treble Driver 27 x 60mm true ribbon
- AV Shield No
- Sensitivity (2.83V @lm) 86dB
- Recommended Amplifier power 30-120w
- Peak Power Handling 120w
- PeakSPL 102dB
- Nominal Impedance 6Ω
- Minimum Impedance 4.1Ω
- Frequency Response ( + / -3dB) 54Hz – 24kHz
- Bass Extension (-6dB) 40Hz
- Crossover Frequency 2.9kHz
- Cabinet Volume (in litres) 17.6L
- Dimensions
- Height (on plinth & spikes) 395mm
- Width 246mm
- Depth(inc Grille and Terminals) 312mm
- Carton Size 650mm x 400mm x 515mm
- Net Weight 24.6kg/ctn
- Finish Piano Walnut / Piano Black, Piano Black
- Standard Accessories User manual, certificate, rubber feet
| Select Option | Piano Black, Piano Walnut |
|---|
