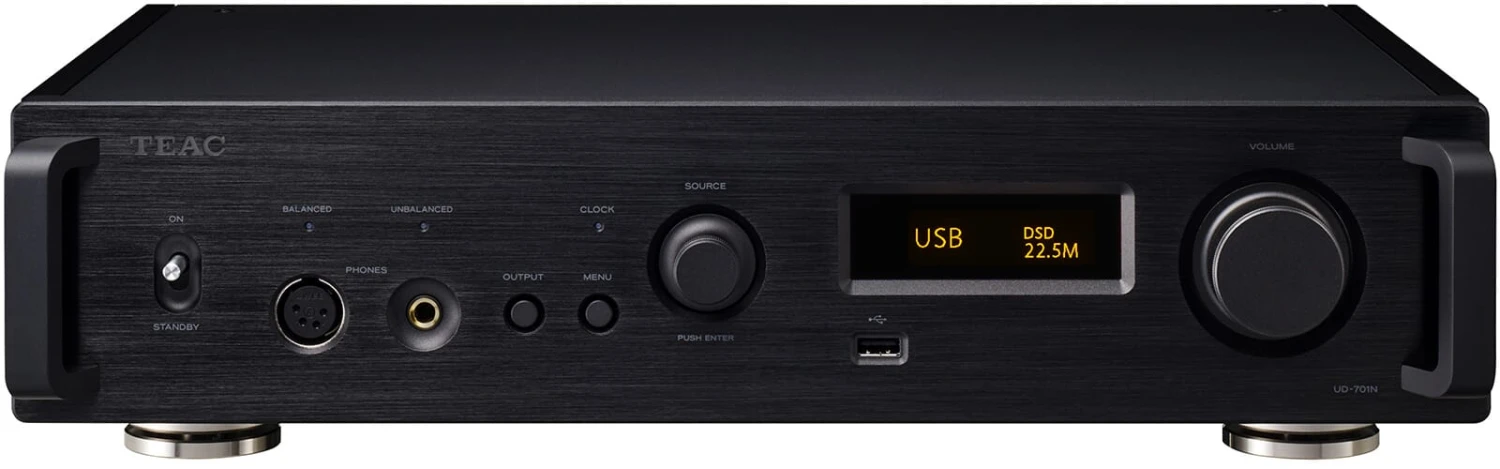

With a newly-developed original discrete DAC,this advanced all-around unit fascinates every audiophile as the core of an audio system. With USB DAC functions as the foundation, a network player, an analog preamp, a headphone amplifier and various other functions have been combined at a high level. This TEAC flagship with a newly-developed TEAC Delta Sigma discrete DAC has achieved a new level.
As a USB DAC and network player, 22.5MHz DSD and 384kHz/32-bit PCM are supported. Using the newly-developed TEAC discrete DAC, all digital signals are converted to analog signals with high audio quality. Not only can this be used for all kinds of digital playback, from systems centered on a PC or Mac to audio server systems using NAS and streaming playback, it can also fulfill a core role in systems as a preamp with analog and digital inputs. The UD-701N is an all-around unit that flexibly supports new listening styles in a new age. Along with allowing listening through speakers in combination with a power amplifier, it also supports balanced headphone output using a 4-pin XLR jack.
- Newly-developed TEAC Delta Sigma discrete DAC

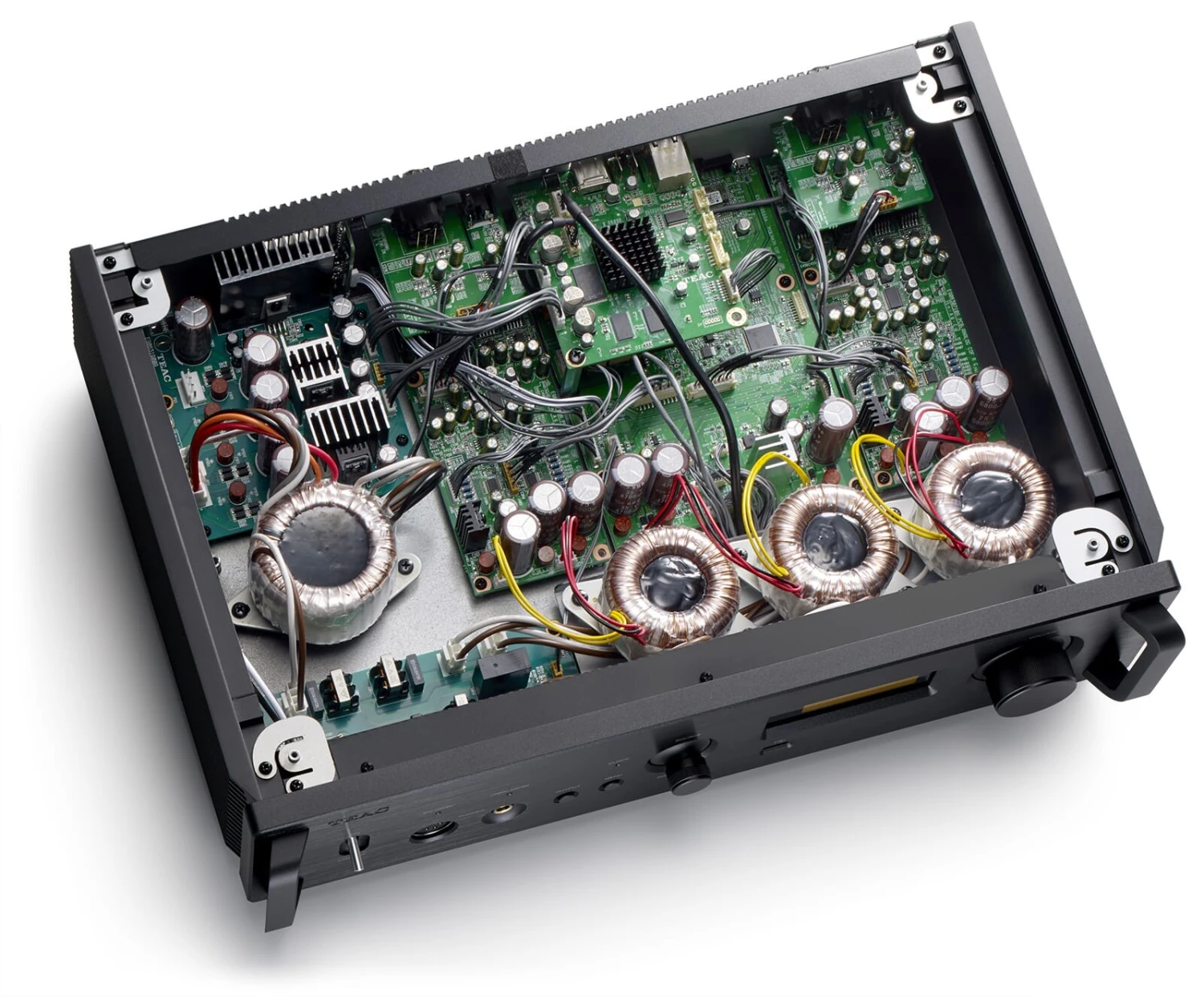

- Dual mono, fully-balanced circuit structure realizes outstanding channel separation
- Playback of 22.5MHz DSD and 384kHz/32-bit PCM is possible as a USB DAC and network player
- Preamp function with four digital inputs and two pairs of RCA/XLR line inputs
- 4-pin XLR headphone amplifier that can be switched between balanced and active ground
- MQA full decoder function that also supports digital inputs of CD Player
- Upconversion to 2/4/8 sampling frequencies using RDOT-NEO
- Bluetooth receiver supports LDAC, aptX HD, and other high-resolution codecs
- Conforms to OpenHome standards and supports Roon Ready
- Supports Spotify Connect, Tidal, Qobuz, and TuneIn (Internet Radio)
- Unique TEAC-HCLD2 enhanced-current output buffer circuits
- Analog preamp circuits with high resolution using TEAC-QVCS
Read More
DAC: TEAC Delta Sigma Discrete DAC x 2
Upconvert: 2xFs / 4xFs / 8xFs (maximum 384kHz)

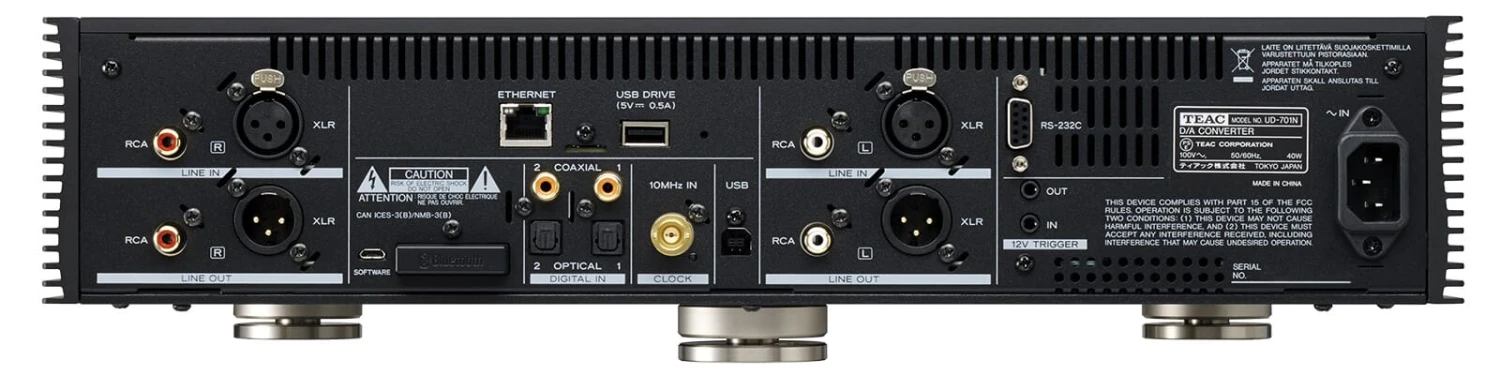

Analog audio inputs:
Balanced:
Connectors: XLR x 1 pair
Input impedance: 50kΩ
Maximum input level: 5Vrms
Unbalanced:
Connectors: RCA Pin (gold-plated) x 1 pair
Input impedance: 25kΩ
Maximum input level: 2.5Vrms
Digital audio inputs:
USB:
Connectors: USB B-type x 1, (USB2.0 compliant)
Supported formats:
PCM: 16 / 24 / 32bit / 44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHz
DSD: 2.8M / 5.6M / 11.2M / 22.5MHz
Coaxial:
Connectors: RCA Pin (god-plated) x 2 pairs
Input level: 0.5Vp-p
Input impedance: 75Ω
Supported formats:
PCM: 16 / 24bit / 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD: 2.8MHz (176.4kHz/24bit DoP format)
Optical:
Connectors: Rectangular (TOS) x 2 pairs
Input level: – 24.0 to – 14.5dBm peak
Supported formats:
PCM: 16 / 24bit / 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD: 2.8MHz (176.4kHz/24bit DoP format)
Ethernet:
Connector: RJ-45 x 1 (1000Base-T)
Supported formats:
PCM: 16 / 24 / 32bit / 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz / 352.8k / 384kHz (Stereo)
DSD: 2.8M / 5.6M / 11.2M / 22.5MHz (Stereo)
Supported formats:
PCM lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD lossless: DSF, DSDIFF (DFF), DoP
Compressed audio: MP3, AAC (m4a container)
USB flash drive:
Connectors: USB A-type x 2 (Front x 1, Rear x 1, USB2.0 compliant)
Supported file system: FAT32, exFAT and NTFS single partation
Supported file format:
PCM: 16 / 24 / 32bit / 32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz / 352.8k / 384kHz (Stereo)
DSD: 2.8M / 5.6M / 11.2M / 22.5MHz (Stereo)
Supported file formats:
PCM lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD lossless: DSF, DSDIFF (DFF), DoP
Compressed audio: MP3, AAC (m4a container)
Bluetooth:
Bluetooth version: 4.0
Output class: Class2 (rrange: 10m)
Supported profile: A2DP, AVRCP
Supported A2DP codec: LDAC, LHDC, AAC, SBC, QualcommaptX audio/HD audio
A2DP content protection: SCMS-T
Number of saved pairings: Maximum 8
Analog audio outputs:
Balanced:
Connectors: XLR (gold-plated pins) x 1 pair
Output impedance: 220Ω
Output level settings: Selectable from Fixed (0dB), Fixed (+6dB), Variable, or Off
Maximum output level:
2.0Vrms (1kHz, Full-scale, 10kΩ loaded, FIxed at 0dB)
4.0Vrms (1kHz, Full-scale, 10kΩ loaded, FIxed at +6dB)
12Vrms (1kHz, Full-scale, 10kΩ loaded, Variable)
Unbalanced:
Connectors: RCA Pin (gold-plated) x 1 pair
Output impedance: 180Ω
Output level settings: Selectable from Fixed (0dB), Fixed (+6dB), Variable, or Off
Maximum output level:
2.0Vrms (1kHz, Full-scale, 10kΩ loaded, FIxed at 0dB)
4.0Vrms (1kHz, Full-scale, 10kΩ laoded, Fixed at +6dB)
6.0Vrms (1kHz, Full-scale, 10kΩ loaded, Variable)
Headphone outputs:
Balanced:
Connector: 4-pin XLR x 1
Pin asign: Pin1: L+, Pin2: L – , Pin3: R+, Pin4: R –
Unbalanced:
Connector: 6.3mm Stereo jack (gold-plate) x 1
Maximum output power:
Balanced: 700mW + 700mW (32Ω loaded)
Unbalanced: 500mW + 500mW (32Ω x 1 loaded)
Supported impedance: 16 to 600Ω
Clock sync input:
Connector: BNC (gold-plated) x 1
Input frequency: 10MHz
Input impedance: 50Ω
Input level:
Rectangle wave: Equivalent to TTL
Sine wave: 0.5 to 1.0Vrms
External control:
Trigger Input (12V TRIGGER IN):
Connector: 3.5mm Mono mini jack x 1
Input level: 12V, 1mA
Trigger output (12V TRIGGER THRU):
Connector: 3.5mm Mono mini jack x 1
Output level: 12V
Maximum current supply: 100mA
Frequency response: 5Hz to 80,000Hz (+1dB/ – 5dB)
Total harmonic distortion: 0.005% (1kHz, LPF: 20 to 20kHz)
S/N ratio: 110dB (A-Weight, IHF-A)
Power: AC120V, 560Hz
Power consumption: 40W
Standby power: 0.4W
Operating Temperature: +5°C to +35°C
Operating Humidity Range: 5% to 85% (no condensation)
Storage Temperature Range: – 20°C to +55°C
Dimensions (WHD): 17.5″ x 4.4″ x 13.1″
Weight: 26.0 lbs.
Included accessories: Power cord, Remote control (RC-1330), AAA batteries x 2, Owner’s manual
